Continuous Heat Sealer – ACS

Continuous heat sealing machine for hermetic sealing of plastic and aluminium bags. High degree of automation that reduces times and increases productivity. It features precision guides for linear motion and welding as well as a reinforced thick heating and welding system that ensures fast and effective sealing of the bag.

It can seal plastic films from various materials such as PP, PE or aluminum foil bags.

Horizontal or vertical placement of the bags. The conveyor belt can be moved in all directions, depending on the size of the products.

Easy to use and maintain with a fully automated control panel that allows you to adjust the speed, temperature and size.

Capable of connecting with a gas injection system as well as with a piece counter.

General Features :

• Horizontal or vertical position
• Adjustable conveyor belt position in all directions (front / rear and top / bottom)
• Adjustable conveyor and sealing speed
• Easy-to-use control panel
• Easy cleaning and maintenance
• Straight motion and welding guides
• Protective covers for operator safety.
• Copper heating / cooling system for quick heating and perfect welding result.

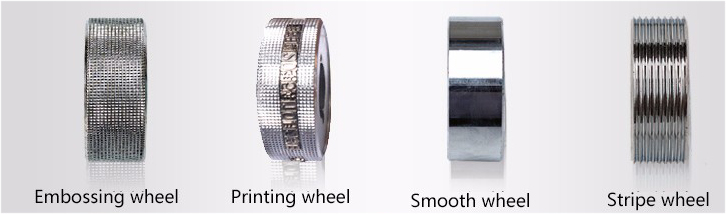

• Optional : Embedded printer (embossed or ink with full set of English letters/numbers.)
• Certification CE

Technical Specifications :

• Welding thickness: 6 up to 15mm
• Welding temperature: 0-300 ^οC
• Maximum bag height for vertical heat seal: ~350mm
• Speed: up to 12 m/min
• Sealing power : 850W
• Motor power : 80W
• Power Supply : 220V / 50Hz
• Band conveyor capacity: up to 5kg
• Machine dimensions: 810 x 370 x 320mm (the horizontal)
• Weight: 23kgs (the horizontal)

Optional :

• Stainless steel frame
• Gas Flush system
• Piece counter
• Embedded printer (embossed or ink with full set of English letters/numbers)
